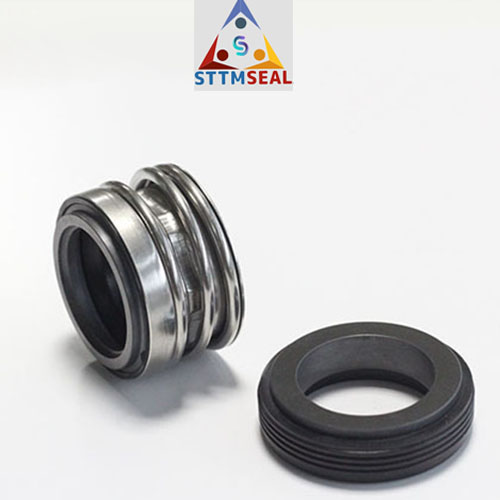

Operating Limits of Elastomer Bellow Seals R13
- Temperature: -20℃ to 200℃, dependent on the elastomer
- Pressure: Up to 6 bar
- Speed: Up to 10 m/s
- End play/axial float allowance ±0.1mm
Sizes of Elastomer Bellow Seals R13
3/8”, 1/2”, 5/8”, 3/4”, 7/8”, 1”
Materials Combination of Elastomer Bellow Seals R13
- Face: Carbon, SiC, TC
- Seat: Ceramic, SiC, TC
- Bellow: NBR, EPDM, VITON etc.
- Spring: SS304, SS316
- Metal parts: SS304, SS316
Specification of Elastomer Bellow Seals R13
| Elastomer Bellow Seals By Size | d | D | D1 | L1 | L2 |
| R13-3/8″A | 9.53 | 23.29 | 22.23 | 6.35 | 16.08 |
| R13-3/8″ | 9.53 | 23.29 | 22.23 | 7.14 | 16.86 |
| R13-1/2″A | 12.7 | 23.29 | 25.4 | 6.35 | 16.86 |
| R13-1/2″ | 12.7 | 23.29 | 25.4 | 7.93 | 16.86 |
| R13-5/8″ | 15.88 | 30.1 | 31.75 | 10.3 | 18.44 |
| R13-3/4″ | 19.05 | 33.07 | 34.93 | 10.3 | 18.44 |
| R13-7/8″ | 22.23 | 36.3 | 38.1 | 10.3 | 20.82 |
| R13-1″ | 25.4 | 39.42 | 41.28 | 11.1 | 20.82 |

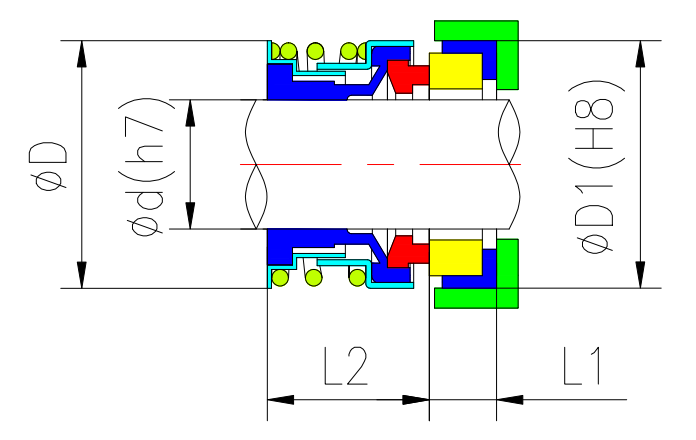

Design Drawing of Elastomer Bellow Mechanical Seals R13
