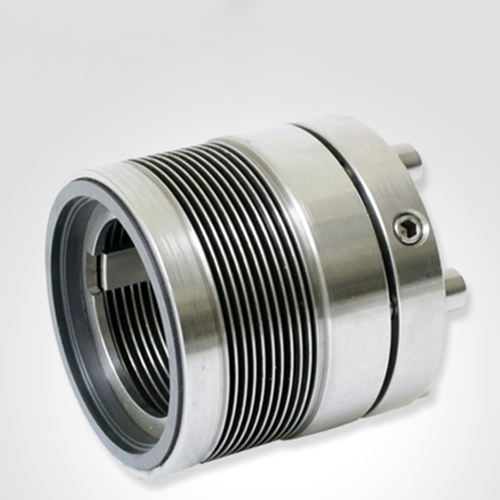

Metal Bellow Mechanical Seals M22

Replacement for:

Features:

Performance Capabilities of Metal Bellow Mechanical Seals M22

16mm to 100mm

Metal Bellow Mechanical Seals By Size	d	D	D1	L1	L2
M22-16	16	38	35	11.5	46.7
M22-18	18	40	37	11.5	46.7
M22-20	20	42	40	11.5	46.7
M22-22	22	44	43	11.5	46.7
M22-24	24	46	43	11.5	46.7
M22-25	25	47	45	11.5	46.7
M22-28	28	50	48	11.5	46.7
M22-30	30	52	50	11.5	46.7
M22-32	32	54	56	14	46.7
M22-33	33	55	56	14	46.7
M22-35	35	57	58	14	46.7
M22-38	38	60	61	14	46.7
M22-40	40	66	63	14	46.7
M22-43	43	69	66	14	46.7
M22-45	45	71	70	15	46.7
M22-48	48	74	73	15	46.7
M22-50	50	76	75	15	46.7
M22-53	53	79	78	15	46.7
M22-55	55	81	80	15	46.7
M22-58	58	85	83	15	53.2
M22-60	60	87	85	15	53.2
M22-63	63	90	90	18	53.2
M22-65	65	92	92	18	53.2
M22-68	68	95	97	18	53.2
M22-70	70	97	97	18	53.2
M22-75	75	102	105	18.2	53
M22-80	80	107	110	18.2	53
M22-85	85	112	115	18.2	53
M22-90	90	117	120	17.2	54
M22-95	95	122	125	17.2	54
M22-100	100	127	134.3	20	54.2
