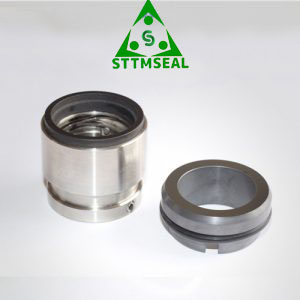

O Ring Mechanical Seals N213

Replacement for:

Features:

Performance Capabilities of O Ring Mechanical Seals N213

18mm to 100mm

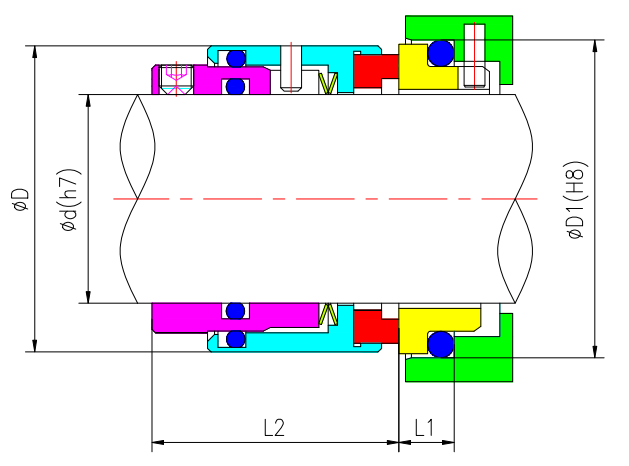

O Ring Mechanical Seals by Size	d	D	D1	L1	L2
N213-18	18	32	33	7	30.7
N213-20	20	34	35	7	30.7
N213-22	22	36	37	7	30.7
N213-24	24	38	39	7	33.2
N213-25	25	39	40	7	33.2
N213-28	28	42	43	7	35.7
N213-30	30	44	45	7	35.7
N213-32	32	47	48	7	35.7
N213-33	33	47	48	7	35.7
N213-35	35	49	50	7	35.7
N213-38	38	54	56	8	37.2
N213-40	40	56	58	8	37.2
N213-43	43	59	61	8	37.2
N213-45	45	61	63	8	37.2
N213-48	48	64	66	8	37.2
N213-50	50	66	70	9.5	38.2
N213-53	53	69	73	9.5	38.2
N213-55	55	71	75	9.5	38.2
N213-58	58	78	78	10.5	42.2
N213-60	60	80	80	10.5	42.2
N213-63	63	83	83	10.5	42.2
N213-65	65	85	85	10.5	42.2
N213-68	68	88	90	11	41.7
N213-70	70	90	92	11.5	48.7
N213-75	75	99	97	11.5	48.7
N213-80	80	104	105	11.5	48.7
N213-85	85	109	110	11.5	48.7
N213-90	90	114	115	13	52.2
N213-95	95	119	120	13	52.2
N213-100	100	124	125	13	52.2
