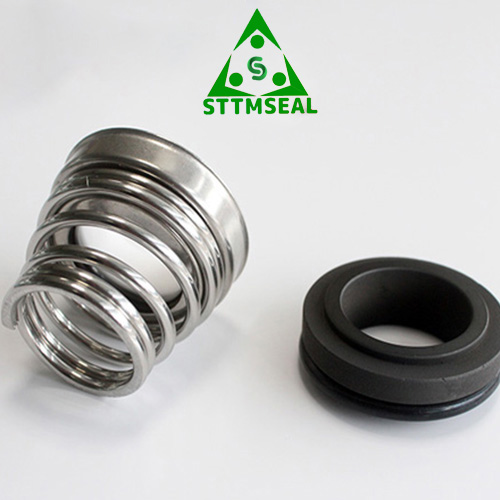

O Ring Mechanical Seals N43 N44

Replacement for:

Features:

Performance Capabilities of O Ring Mechanical Seals N43 N44

10mm to 40mm

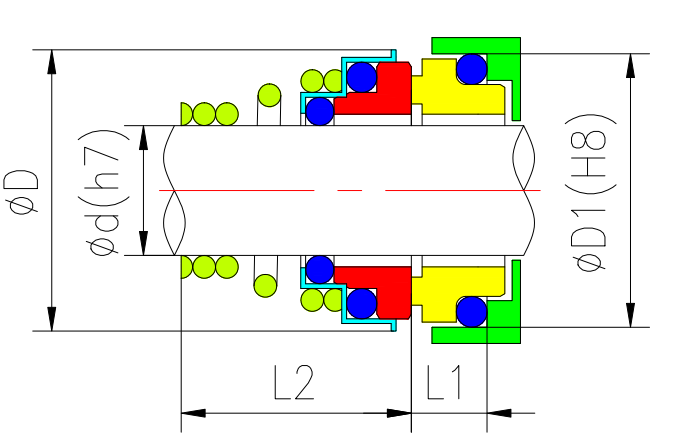

O Ring Mechanical Seals by Size	d	D	D1	L1	L2
N43-10	10	20	18.1	5.5	15.2
N43-11	11	22	20.6	5.5	18.2
N43-12	12	22	20.6	5.5	18.2
N43-13	13	25	23.1	6	22.2
N43-14	14	25	23.1	6	22.2
N43-15	15	29	26.9	7	22.2
N43-16	16	29	26.9	7	23.2
N43-17	17	29	26.9	7	23.2
N43-18	18	33	30.9	8	24.2
N43-19	19	33	30.9	8	25.2
N43-20	20	33	30.9	8	25.2
N43-21	21	38	35.4	8	25.2
N43-22	22	38	35.4	8	25.2
N43-23	23	38	35.4	8	27.2
N43-24	24	38	35.4	8	27.2
N43-25	25	40	38.2	8.5	27.2
N43-28	28	46	43.3	9	29.2
N43-29	29	46	43.3	9	30.2
N43-30	30	46	43.3	9	30.2
N43-32	32	46	43.3	9	30.2
N43-33	33	48	53.5	11.5	39.2
N43-35	35	50	53.5	11.5	39.2
N43-38	38	56	60.5	11.5	39.2
N43-40	40	58	60.5	11.5	39.2

O Ring Mechanical Seals by Size	d	D	D1	L1	L2
N44-10	10	20	21	7	15.2
N44-12	12	22	23	7	18.2
N44-14	14	25	25	7	22.2
N44-16	16	29	27	7	23.2
N44-18	18	33	33	10	24.2
N44-20	20	33	35	10	25.2
N44-22	22	38	37	10	25.2
N44-24	24	38	39	10	27.2
N44-25	25	40	40	10	27.2
N44-28	28	46	43	10	29.2
N44-30	30	46	45	10	30.2
N44-32	32	46	48	10	30.2
N44-33	33	48	48	10	39.2
N44-35	35	50	50	10	39.2
N44-38	38	56	56	13	42.2
N44-40	40	58	58	13	42.2
