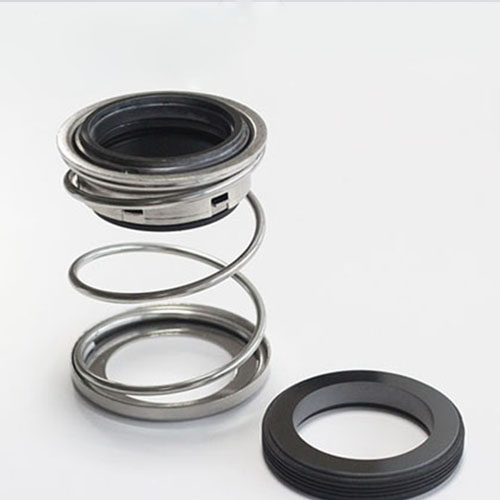

Elastomer Bellow Seals R14

Replacement for:

Features:

Operating Limits of Elastomer Bellow Seals R14

16mm to 120mm; 5/8” to 2.5”

Elastomer Bellow Seals By Size	d	D	D1	L1	L2
R14-16	16	34	30	8	25.2
R14-18	18	36.8	32	8	25.2
R14-20	20	38.8	34	8	25.2
R14-22	22	41.5	36	8	25.2
R14-25	25	44.8	39	8	26.2
R14-28	28	48.5	43	8	26.2
R14-30	30	52	48	8	26.2
R14-35	35	57	53	10	30.2
R14-40	40	67	58	10	34.2
R14-45	45	73	63	10	36.2
R14-50	50	79	68	10	41.2
R14-55	55	84	73	12	41.2
R14-60	60	90	79	12	41.2
R14-65	65	98.5	86	12	49.2
R14-70	70	103.5	91	12	52.2
R14-75	75	110.5	96	12	52.2
R14-80	80	120	105	14	56.2
R14-85	85	125	110	14	56.2
R14-90	90	132	115	14	56.2
R14-95	95	137	120	14	56.2
R14-100	100	144	125	14	62.2
R14-110	110	157	135	16	62.2
R14-120	120	169.5	145	16	72.2

Elastomer Bellow Seals By Size	d	D	D1	L1	L2
R14-5/8″	15.87	34	30.95	10.3	25.2
R14-3/4″	19.05	38.8	34.15	10.3	25.2
R14-7/8″	22.22	41.5	37.3	10.3	25.2
R14-1″	25.4	44.8	40.5	10.3	25.2
R14-1 1/8″	28.57	48.5	47.65	11.9	33.2
R14-1 1/4″	31.75	57	50.8	11.9	33.2
R14-1 3/8″	34.92	57	54	11.9	33.2
R14-1 1/2″	38.1	67	57.15	11.9	33.2
R14-1 5/8″	41.27	67	60.35	11.9	33.2
R14-1 3/4″	44.45	73	63.5	11.9	41.2
R14-1 7/8″	47.62	73	66.7	11.9	41.2
R14-2″	50.8	79	69.85	13.5	41.2
R14-2 1/8″	53.97	84	73.05	13.5	41.2
R14-2 1/4″	57.15	84	76.2	13.5	41.2
R14-2 3/8″	60.32	90	79.4	13.5	41.2
R14-2 1/2″	63.5	94	82.55	13.5	41.2
