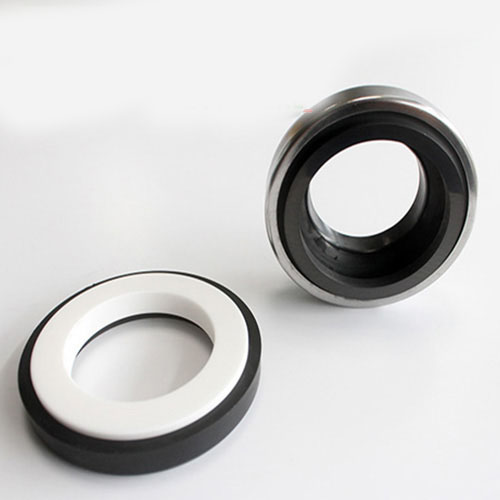

Elastomer Bellow Seals R26

Replacement for:

Features:

Category: Mechanical-seals

Performance Capabilities of Elastomer Bellow Seals R26

6mm to 70mm

Elastomer Bellow Seals By Size	d	D	d1	L1	L2
R26-6	6	18	22	4	8.7
R26-8	8	18	22	4	8.7
R26-8A	8	18	22	4	11.2
R26-8B	8	24	26	5.5	11.2
R26-8C	8	24	26	8	11.2
R26-9	9	24	26	5.5	11.2
R26-9A	9	24	26	8	11.2
R26-10	10	24	26	5.5	11.2
R26-10A	10	24	26	8	11.2
R26-11	11	24	26	5.5	11.2
R26-11A	11	24	26	8	11.2
R26-12	12	24	26	5.5	13.2
R26-12A	12	24	26	8	13.2
R26-12B	12	32	29.5	8	13.2
R26-12C	12	32	38	8	13.2
R26-13	13	24	26	5.5	13.2
R26-13A	13	24	26	8	13.2
R26-14	14	32	29.5	8	13.2
R26-14A	14	32	38	8	13.2
R26-14B	14	35	29.5	8	13.2
R26-14C	14	35	38	8	13.2
R26-15	15	32	29.5	8	13.2
R26-15A	15	32	38	8	13.2
R26-15B	15	35	29.5	8	13.2
R26-15C	15	35	38	8	13.2
R26-16	16	32	29.5	8	13.2
R26-16A	16	32	38	8	13.2
R26-16B	16	35	29.5	8	13.2
R26-16C	16	35	38	8	13.2
R26-16D	16	39	42	8	13.2
R26-17	17	39	42	8	13.2
R26-18	18	39	42	8	13.2
R26-19	19	39	42	8	13.2
R26-20	20	39	42	8	13.2
R26-20A	20	42	45	10	13.2
R26-22	22	42	45	10	13.2
R26-24	24	47	50	10	14.2
R26-25	25	47	50	10	14.2
R26-28	28	54	57	10	15.2
R26-30	30	54	57	10	15.2
R26-32	32	54	57	10	15.2
R26-35	35	60	63	10	16.2
R26-38	38	65	68	12	18.2
R26-40	40	65	68	12	18.2
R26-45	45	70	73	12	20.2
R26-50	50	85	88	15	23.2
R26-55	55	85	88	15	23.2
R26-60	60	105	110	15	30.2
R26-65	65	105	110	15	30.2
R26-70	70	105	110	15	32.3
