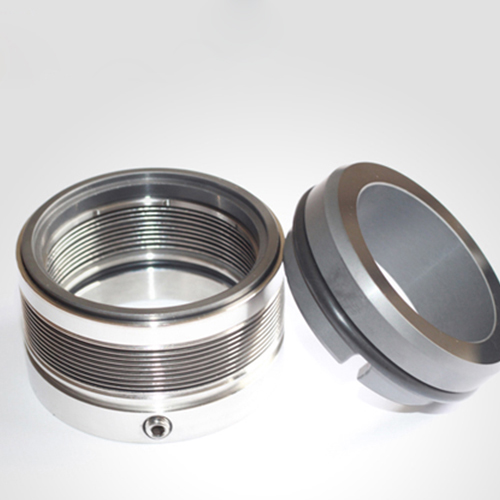

Metal Bellow Mechanical Seals M21

Replacement for:

Features:

Performance Capabilities of Metal Bellow Mechanical Seals M21

16mm to 100mm

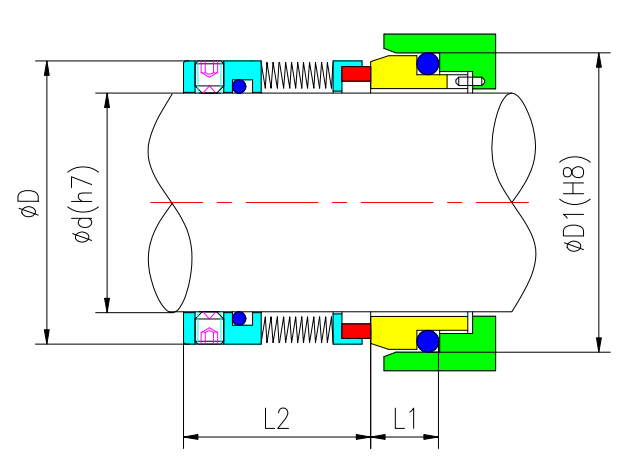

Metal Bellow Mechanical Seals By Size	d	D	D1	L1	L2
M21-16	16	30	27	10	32.7
M21-18	18	32	33	11.5	30.7
M21-20	20	33.5	35	11.5	30.7
M21-22	22	36.5	37	11.5	30.7
M21-24	24	39	39	11.5	28.7
M21-25	25	39.6	40	11.5	28.7
M21-28	28	42.8	43	11.5	31.2
M21-30	30	45	45	11.5	31.2
M21-32	32	46	48	11.5	31.2
M21-33	33	48	48	11.5	31.2
M21-35	35	49.2	50	11.5	31.2
M21-38	38	52.3	56	14	31.2
M21-40	40	55.5	58	14	31.2
M21-43	43	57.5	61	14	31.2
M21-45	45	58.7	63	14	31.2
M21-48	48	61.9	66	14	31.2
M21-50	50	65	70	15	32.7
M21-53	53	68.2	73	15	32.7
M21-55	55	70	75	15	32.7
M21-58	58	71.7	78	15	37.7
M21-60	60	74.6	80	15	37.7
M21-63	63	79	83	15	37.7
M21-65	65	84.1	85	15	37.7
M21-68	68	87.3	90	18	34.7
M21-70	70	87.3	92	18	42.2
M21-75	75	95	97	18	42.2
M21-80	80	98.4	105	18.2	42
M21-85	85	104.7	110	18.2	42
M21-90	90	111	115	18.2	47
M21-95	95	114	120	17.2	48
M21-100	100	117.4	125	17.2	48
