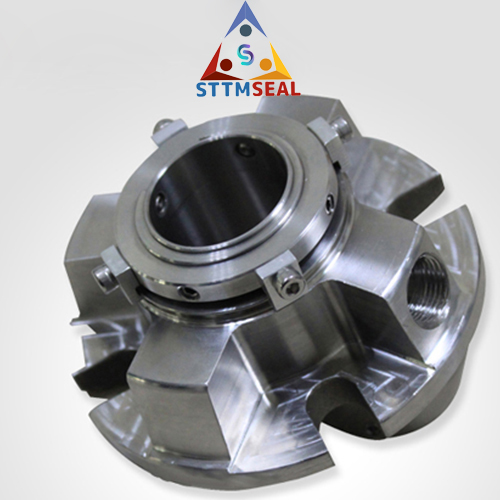

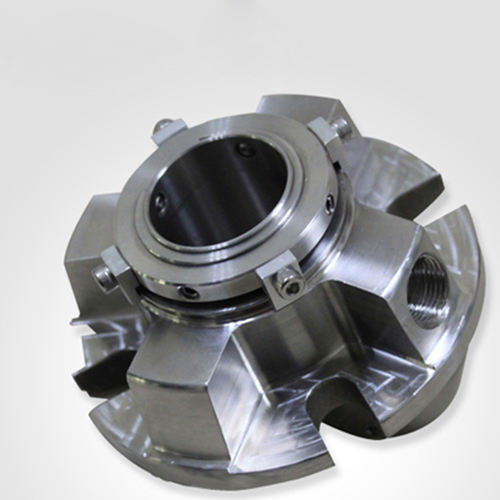

Single Cartridge Seals S11

Performance Capabilities of Single Cartridge Seals S11

• Temperature: -30℃ to 250℃ dependent on the elastomer
• Pressure: Up to 75mm/3.0”          21 bar g/300 psig max.
  75mm/3.0” and over    13 bar g/200 psig max.
• Speed: Up to 25 m/s
• End play/axial float allowance 0.13mm/0.005”
• Run out/out of squareness: 0.05mm/0.002”

Sizes of Single Cartridge Seals S11

24mm to 140mm
1” to 5.5”

Materials Combination of Single Cartridge Seals S11

• Face: Carbon, SiC, TC
• Seat: SiC, TC
• O-rings: NBR, EPDM, VITON, Aflas, FEP, Kalrez, Chemraz etc.
• Spring: SS316, Hastelloy C
• Metal parts: SS316
