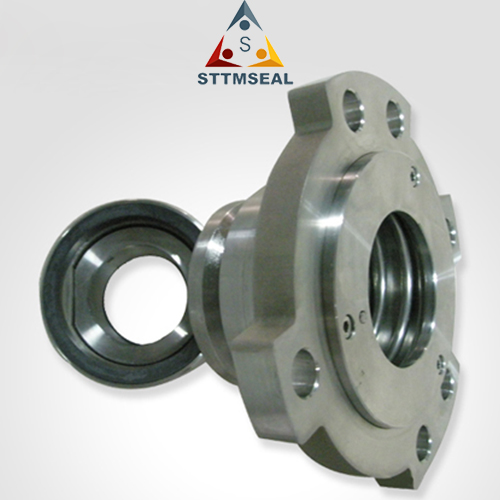

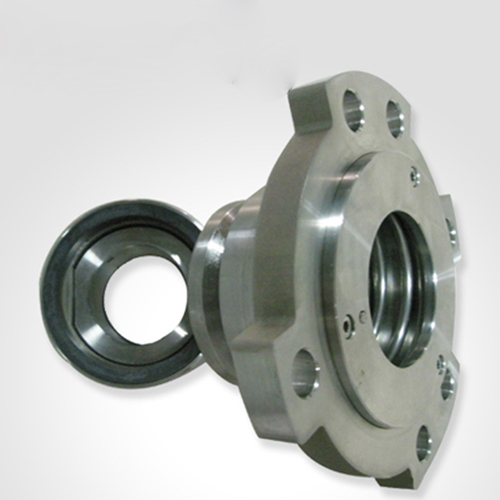

Single Cartridge Seals S15

Performance Capabilities of Single Cartridge Seals S15

• Temperature: Up to 120℃, dependent on the elastomer
• Pressure: Up to 15 bar g/215 psig max.
• Speed: Up to 20 m/s
• End play/axial float allowance 0.13mm/0.005”
• Run out/out of squareness: 0.05mm/0.002”

Sizes of Single Cartridge Seals S15

30mm, 40mm, 50mm, 60mm, 80mm, 90mm, 100mm

Materials Combination of Single Cartridge Seals S15

• Face: Carbon, SiC, TC
• Seat: SiC, TC
• O-rings: NBR, EPDM, VITON, Aflas, FEP, Kalrez, Chemraz etc.
• Spring: SS316, hastelloy C
• Metal parts: SS316
